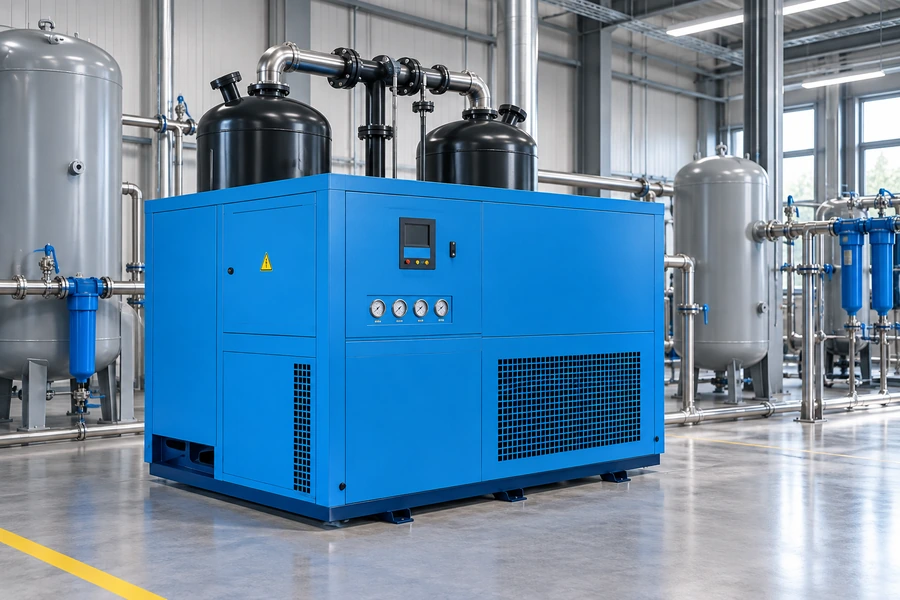

What Is the Dew Point Range for Compressed Air Dryers?

Moisture left in compressed air can cause corrosion, frozen lines, damaged tools, poor product quality, and unexpected production problems.

Compressed air dryers typically provide pressure dew points from about +10°C to -70°C (+50°F to -94°F), depending on dryer technology. Refrigerated dryers commonly deliver around +3°C to +10°C, while desiccant dryers commonly reach -20°C, -40°C, or -70°C. Membrane dryers can reach around -40°C in suitable applications.

When I select an air dryer, I do not automatically choose the lowest possible dew point. Lower dew point usually means more complex equipment and higher operating cost. I first identify the actual air-quality requirement, the lowest temperature that the compressed-air piping will experience, and the sensitivity of the process to moisture.

What Is a Good Dew Point for Compressed Air?

A lower dew point means drier compressed air, but extremely dry air is not necessary for every factory. I prefer to match the dew point to the application instead of over-treating the entire compressed-air system.

For general indoor industrial compressed air, I normally consider a pressure dew point around +3°C to +7°C adequate. If pipes or equipment can experience sub-zero temperatures, I normally move toward -20°C or -40°C. Critical moisture-sensitive processes can require -40°C to -70°C pressure dew points.

I use pressure dew point, not normal weather dew point

The first thing I clarify is the term pressure dew point, or PDP.

Pressure dew point is the temperature at which water vapor starts to condense while the air remains at operating pressure. This is different from atmospheric dew point because compressed air contains water vapor at a much higher pressure.

Atlas Copco describes PDP as the temperature where water vapor in compressed air begins to condense at system pressure. Lower PDP values mean that less water vapor remains in the compressed air.

This makes dew point one of the most useful numbers when I compare compressed air dryers.

For example:

These values also align with the water-vapor classes commonly used in ISO 8573-1. Class 6 corresponds to a PDP of ≤ +10°C, Class 5 to ≤ +7°C, Class 4 to ≤ +3°C, Class 3 to ≤ -20°C, Class 2 to ≤ -40°C, and Class 1 to ≤ -70°C.

I use these classes as a practical way to communicate air-quality requirements between equipment suppliers and industrial buyers.

What Is the Dew Point of a Refrigerated Air Dryer?

Refrigerated dryers are widely used because most industrial plants do not need extremely dry compressed air. They provide a practical balance between moisture removal, investment cost, energy consumption, and maintenance.

A refrigerated compressed air dryer usually provides a pressure dew point around +3°C to +10°C (+37°F to +50°F). Modern industrial refrigerated dryers commonly target approximately +3°C or +4°C PDP, which is suitable for general factory air where piping and equipment remain above freezing temperatures.

Refrigerated dryers cool the compressed air

A refrigerated dryer works by lowering the temperature of the compressed air.

As the air cools, water vapor condenses into liquid water.

The dryer then separates and drains this condensate. The dry air is reheated before it enters the compressed-air network.

Kaeser explains that this process commonly produces compressed air with a pressure dew point between approximately 35°F and 50°F, while its industrial refrigerated dryers are generally designed around approximately 40°F PDP.

Atlas Copco lists refrigerated systems with a stable dew point as low as approximately +3°C / +37°F.

For me, this makes refrigerated dryers the first technology to evaluate for:

• General manufacturing
• Machine shops
• Pneumatic tools
• Packaging equipment
• Automotive plants
• Woodworking
• Metal fabrication
• Indoor production lines
• General factory compressed air

I check the lowest piping temperature

The main limitation is temperature.

Suppose a refrigerated dryer delivers compressed air at a +3°C PDP.

If all piping stays inside a factory at +15°C or +20°C, condensation should not occur simply because of ambient cooling.

But if that pipe runs outdoors during winter and reaches -10°C, the air can cool below its +3°C pressure dew point.

Water can then condense.

It can even freeze.

Kaeser specifically points out that refrigerated dryers may not be suitable when downstream piping enters freezing environments because the compressed air can cool below its dew point.

This is why I do not choose a dryer only according to compressor flow.

I also ask where the compressed air will travel.

How Low Can a Desiccant Air Dryer Go?

Some processes cannot tolerate the moisture levels left by a refrigerated dryer. Outdoor installations, instrumentation, electronics, pharmaceuticals, and other critical systems can require much lower dew points.

A desiccant air dryer commonly produces pressure dew points of -20°C or -40°C and can reach approximately -70°C to -73°C (-94°F to -100°F) with suitable dryer designs. A -40°C PDP is one of the most common specifications for very dry industrial compressed air.

Desiccant dryers adsorb water vapor

A desiccant dryer works differently from a refrigerated dryer.

Instead of cooling the air until water condenses, it passes compressed air through a material that adsorbs water vapor.

Typical desiccants include activated alumina and molecular sieve.

Most industrial regenerative desiccant dryers use two towers.

One tower dries the compressed air.

The other tower regenerates its desiccant.

Then the towers switch roles.

The exact regeneration method depends on the dryer design.

I commonly see:

• Heatless desiccant dryers
• Heated purge dryers
• Blower purge dryers
• Heat-of-compression dryers

Kaeser states that desiccant dryer systems can provide PDP values down to approximately -94°F, while some systems can reach as low as -100°F.

Atlas Copco also lists industrial desiccant equipment rated at -40°C PDP under specified operating conditions.

-40°C is an important industrial benchmark

I see -40°C PDP very often in industrial projects.

There is also a convenient numerical detail:

-40°C equals -40°F.

A -40°C pressure dew point means the compressed air must cool to approximately -40°C at operating pressure before its remaining water vapor begins to condense.

That gives a much greater protection margin than a refrigerated dryer.

I commonly evaluate a -40°C desiccant dryer for:

However, I do not automatically specify -70°C when -40°C is sufficient.

Producing extremely dry air can require more purge air, heat, equipment, and energy. The correct dew point should therefore be based on the process requirement.

What Is the Dew Point of a Membrane Air Dryer?

Membrane dryers occupy an interesting position between refrigerated and desiccant technologies. They are especially useful where space, simplicity, and the absence of electrical power are important.

Membrane compressed air dryers can provide low pressure dew points, with industrial systems available to approximately -40°C (-40°F). I normally consider them for smaller flow rates, point-of-use applications, mobile equipment, remote locations, or installations where electricity and cooling water are unavailable.

Membrane dryers use selective permeation

A membrane dryer contains many hollow fibers.

Water vapor passes through the membrane wall more easily than the main components of compressed air.

A small amount of dry purge air carries the moisture away.

The remaining dry compressed air continues toward the application.

The system can be very simple because there are generally:

• No refrigerant circuits
• No desiccant towers
• No electrical motors
• Few or no moving parts

Kaeser currently lists membrane dryer systems capable of producing pressure dew points down to approximately -40°F / -40°C.

Atlas Copco also positions membrane dryers as a solution for moderate low-dew-point requirements and point-of-use installations, while recommending desiccant technology when a full compressed-air system needs extremely dry air down toward -70°C.

I compare all three main dryer technologies

I use these values as selection guides rather than universal guarantees.

Actual dryer performance depends on inlet temperature, operating pressure, airflow, ambient conditions, and dryer sizing.

A dryer specified for a certain dew point under standard rating conditions may not deliver that same performance if it receives hotter air or more airflow than its design allows.

My insights: What Is the Dew Point Range for Compressed Air Dryers

Looking only for the lowest advertised dew point can make dryer selection more expensive without making the compressed-air system better. I prefer to define the required dryness first.

The practical pressure dew point range for industrial compressed air dryers is approximately +10°C to -70°C (+50°F to -94°F), with some specialized desiccant systems reaching about -73°C (-100°F). Refrigerated dryers cover general-purpose air near +3°C, while desiccant and membrane technologies address lower dew-point applications where moisture or freezing creates greater risk.

My main rule is to keep the dew point below the coldest pipe temperature

This is the most practical way I approach dryer selection.

I first find the lowest temperature the compressed-air network can experience.

Then I select a pressure dew point safely below that temperature.

If an indoor factory remains at 20°C throughout the year, a +3°C refrigerated dryer may provide a large enough margin for ordinary pneumatic equipment.

If the same air line runs outdoors where temperatures fall below freezing, +3°C may no longer be safe.

I would then consider -20°C or -40°C dry air.

This approach prevents me from choosing an expensive dryer without a technical reason.

ISO water classes give me useful targets

I also use ISO 8573-1 water classes when the customer needs a formal compressed-air specification.

These values make it easier for me to convert a broad request such as “I need dry compressed air” into a measurable specification.

I do not confuse dew point with relative humidity

This distinction is also important.

Relative humidity changes with temperature.

Pressure dew point provides a more useful compressed-air specification because it tells me the temperature at which condensation will begin at operating pressure.

So when a customer asks how dry the compressed air is, I prefer a PDP value such as:

+3°C PDP

or:

-40°C PDP

rather than simply saying the compressed air has “low humidity.”

I consider inlet conditions before trusting the rated dew point

The dryer rating is not the whole story.

I also check:

• Compressor airflow
• Maximum air demand
• Operating pressure
• Compressed-air inlet temperature
• Ambient temperature
• Required pressure dew point
• Lowest downstream temperature
• Dryer pressure drop
• Prefiltration
• Condensate drainage
• Future system expansion

A dryer can be correctly selected by nominal flow and still be undersized when the compressed air enters much hotter than the manufacturer's rating condition.

High ambient temperature can also reduce refrigerated-dryer capacity.

I therefore use correction factors from the dryer manufacturer when operating conditions differ from rated conditions.

I select the dryer from the application backward

My practical selection sequence is:

application → required air quality → lowest pipe temperature → required PDP → airflow → inlet temperature → pressure → dryer technology → filtration → operating cost

For most ordinary indoor manufacturing systems, that process often leads me to a refrigerated dryer at approximately +3°C PDP.

For outdoor piping, cold climates, instrumentation, or more moisture-sensitive processes, I usually evaluate a desiccant dryer around -20°C or -40°C PDP.

For extremely demanding processes, I can move toward -70°C PDP.

For smaller point-of-use systems where installation simplicity is valuable, a membrane dryer may be a better solution.

So when someone asks me, “What is the dew point range for compressed air dryers?”, my practical answer is:

Most industrial dryer systems operate somewhere between about +10°C and -70°C pressure dew point. Refrigerated dryers normally cover the warmer end, desiccant dryers cover the lowest dew points, and membrane dryers fill selected applications between them. The best dew point is not the lowest number available. It is the lowest level the real process and environment require.

Conclusion

Compressed air dryer dew points generally range from about +10°C to -70°C PDP. I select the target from the application, climate, air-quality requirement, flow, and operating cost.
