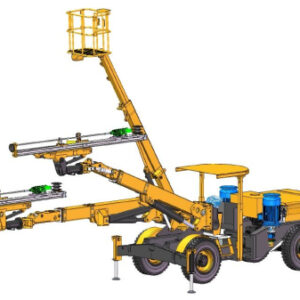

KJ311 two-arm intelligent tunneling jumbo is a mainstream model for large-section working conditions. The 4WD articulated structure ensures excellent off-road performance and flexible relocation. Two 360° rotatable booms enable full-angle drilling with high efficiency on hard rock. The built-in intelligent system supports remote control, auto anti-jamming and fault diagnosis to improve underground safety. Complying with international mining standards, it has complete explosion-proof, dust-proof, noise reduction and exhaust purification configurations. The stable hydraulic system and modular design facilitate maintenance. It is core equipment for hard rock tunneling and support of overseas large mines, long tunnels and water hubs.
Two independent booms rotate 360° and luff ±62°, drilling at any position on roadway roof, walls and face. No frequent relocation to improve efficiency.
4-wheel drive and articulated steering provide large traction and small turning radius. The 24° maximum gradient ensures stable travel on steep slopes, gravel and mud.
17kW rock drill has high frequency and torque, drilling fast and neatly on granite and basalt, reducing rework.
Four functions including positioning, anti-jamming, diagnosis and remote control realize man-machine separation and reduce failure rate.
Mining Ex and IP65 grade, complete exhaust and noise reduction. It works stably in gas, dusty and humid underground for long-term use.
Large-flow circuit and multi protections resist fatigue and impact, keeping stable pressure under full load to guarantee project schedule.
Switch freely between local lever and wireless remote control, suitable for conventional and unmanned sites.
The thickened structure is optimized for vibration resistance, extending service life under long heavy load.
Power, hydraulic, electric and travel parts are zoned. Wearing parts are concentrated for easy on-site service.
Suitable for mines, tunnels and water projects. Complete supply system makes it the first choice for large overseas projects.
