KG510/KG510H Open-Pit Down-the-Hole Drilling Rig

● Heavy-duty structural design, high rigidity and strong stability for long-hour operation.

●Stable hydraulic system ensures smooth torque output and high drilling efficiency.

● Strong power configuration, low fuel consumption and reliable continuous working performance.

●Reinforced crawler chassis with strong climbing ability, adaptable to complex mountain terrain.

● Wide drilling range, suitable for quarry blasting, open pit mining and construction projects.

● KG510H equipped with high-efficiency dust collector to meet environmental protection standards.

● Simple operation, convenient maintenance and low comprehensive operating cost.

Product Description：

KAISHAN KG510 and KG510H are professional heavy-duty open-pit DTH drilling rigs designed for medium and large-scale mining, quarry blasting and engineering construction projects. The whole machine adopts reinforced steel structure, providing higher rigidity, better shock resistance and longer service life to ensure stable performance under long-term heavy-load working conditions.

Equipped with an optimized hydraulic system and high-quality core components, the drilling rig delivers stable torque and fast drilling speed, greatly improving construction efficiency even in hard rock formations. The heavy-duty crawler chassis and reliable walking system enable the rig to adapt to various complex terrains such as mountain slopes and rugged ground, with strong passing ability and excellent site adaptability.

KG510H model is specially equipped with an integrated high-efficiency dust removal system, which effectively controls dust pollution and fully meets global green mining and environmental protection requirements. With reasonable drilling parameters, the rig can meet most construction demands of open-pit blasting, mine excavation and infrastructure drilling.

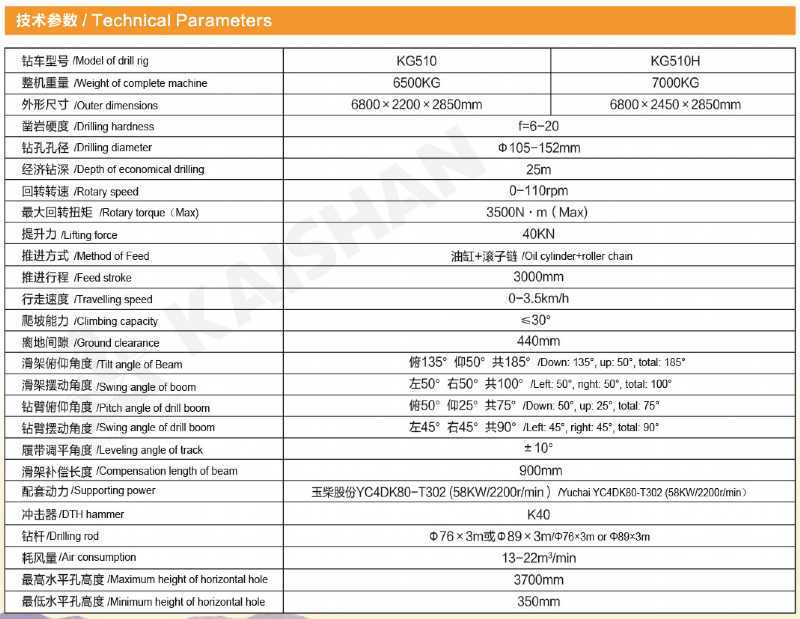

KG510/KG510H Drill Rig Technical Parameters
