Kaishan KSZJ water well drilling rig spiral air compressor

  • High pressure air supply for deep drilling
  • Fuel-saving diesel engine
  • Portable and rugged design
  • Stable airflow output
  • Suitable for 90-300m drilling depth
  • Easy transportation and maintenance
  • Ideal for African and Southeast Asian markets
Share:

Product Description:

SKY screw compressor main unit
Designed for high pressure (40 bar)

Rotor profile, high efficiency

Two-stage compression: flexible design with corresponding lift valve, heavy-duty design, SKF bearings

Good structure, reliable

Heavy-duty dedicated diesel engines. Matching domestic heavy-duty dedicated diesel engines from Yuchai, Cummins, and other leading manufacturers. Achieving optimal combustion throughout the engine’s operating range. The products offer higher reliability, stronger power, and better fuel economy.

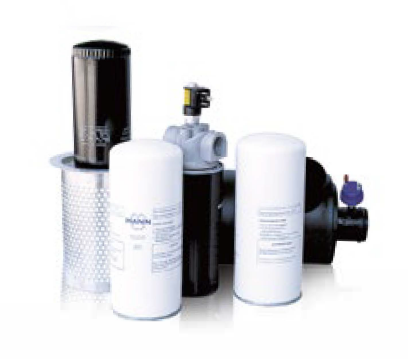

Triple Filtration System
Air Filtration System
Patented, maintenance-free centrifugal air pre-filter removes over 90% of dust and impurities, extending filter maintenance and replacement cycles by 5 times. The precision filter layer of the cyclone main air filter removes remaining dust, ensuring no machine wear. A safety filter allows for air filter maintenance without shutting down the machine, ensuring safe operation. Suitable for continuous operation in harsh environments such as deserts and dusty areas.
Oil-Gas Separation System
Reduces the impact of excessive or insufficient oil filling in the separator on the oil content of compressed air, always maintaining a minimum oil content of 3ppm. Clean compressed air is beneficial for the safe operation of air-using equipment.
10µ Precision Lubricating Oil Filter
Ensures minimal wear on moving parts. Multiple fuel filtration devices protect the reliability of the engine fuel injection system.



产品型号排气压力
(Mpa)
排气量
m3/min
电机功率(KW)排气接口重量(KG)外形尺寸(mm)
KSZJ-15/14.51.4515118G2×1,G3/4×121002600×1520×1800
KSZJ-18/171.718191G2×1,G3/4×127003000×1800×2000
KSZJ-19/181.819191G2×1,G3/4×128003000×1800×2000
KSZJ-29/23G2.329288G2×1,G3/4×140503500×1950×2030
KSZJ-1100/252.531288G2×1,G3/4×141003500×1950×2030
KSZJ-31/25-34/172.5(1.7)31(34)404G2×1,G3/4×145003500×2100×2200
KSZJ-34/252.534404G2×262004250×2100×2500
KSZJ-35/30-38/253.0(2.5)35(38)412G2×1,G3/4×154003500×2160×2500
