KT11 Integrated Open-Pit Down-the-Hole Drill Rig

Integrated all-in-one design enables fast relocation and immediate startup. Integrated air compressor, hydraulic and power system requires no on-site assembly. It supports 25° climbing and crawler leveling for flexible operation in complex terrains.

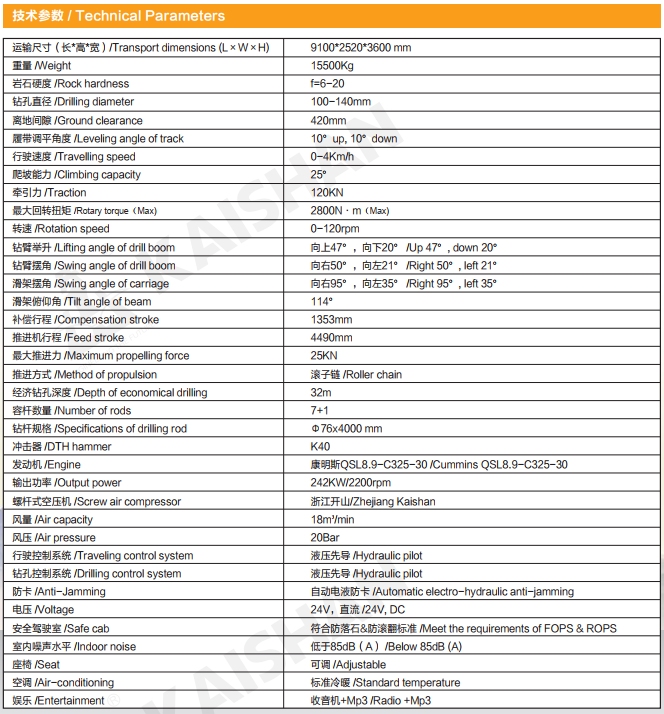

Powered by 242kW Cummins diesel engine and 20bar high air pressure. It drills 90-140mm diameter holes up to 32m depth, delivering efficient drilling for f=6-20 hard rock.
Automatic rod handling system saves labor and costs. Equipped with rod lubrication and anti-jamming functions, it supports single-person operation, ideal for African mining sites with labor shortage.
Hydraulic dry dust collection ensures eco-friendly and low-noise operation. Zero dust pollution meets environmental standards. The air-conditioned cab (＜85dB) guarantees safe and comfortable work in high-temperature and dusty conditions.
Durable mining-grade structure for harsh conditions. Reinforced frame, heavy-duty crawler and intelligent monitoring system with customized high-temperature and dust-proof design, ensuring low failure rate and easy maintenance for African mines.

Product Description：

Kaishan KT11 is an integrated high-pressure surface DTH drill rig, integrating air compressor, hydraulic and power systems. Powered by a single Cummins diesel engine, it features compact structure, fast relocation and ready-to-use on site. It drills vertical/inclined/horizontal holes with diameter 90-140mm and economic depth 32m. Standard with automatic rod handling, hydraulic dry dust collection, anti-jamming system, A/C cab. Ideal for large open pit mines, quarries, water/road projects; exported to Africa & South Africa.
