– Unique dual power integrated design, diesel power for site relocation and electric power for formal drilling, greatly cutting long-term fuel consumption and operation costs.
– 25bar high-pressure system with 20-26m³/min large air displacement, stably supports 135-165mm diameter drilling, perfect for high-hardness rock quarry and open-pit mining.
– Cummins diesel power unit ensures strong mobility without power limit, electric drilling mode delivers stable output and lower maintenance failure rate.
– Dual dust removal solution with dry and wet dust collection options, meets diverse regional environmental standards, realizing zero-dust and low-noise construction.
– 410mm high ground clearance and 25° climbing capacity, flexible for rugged mine terrain, reinforced crawler chassis ensures stable operation in harsh mining conditions.
– Optimized single-person operation system, simple operation and easy daily maintenance, ideal for long-term continuous mining projects in Africa and Southeast Asia.
The Kaishan KT20S Integrated Open-Pit DTH Drilling Rig is a newly upgraded energy-saving dual-power mining drilling equipment, specially customized for medium open-pit mines, stone quarries and long-term blasting drilling projects. Adopting a unique diesel-electric dual-power integrated structure, it perfectly solves the high fuel consumption problem of traditional full-diesel drill rigs and the mobility limitation of full-electric drilling machines, balancing flexible relocation and low-cost operation.

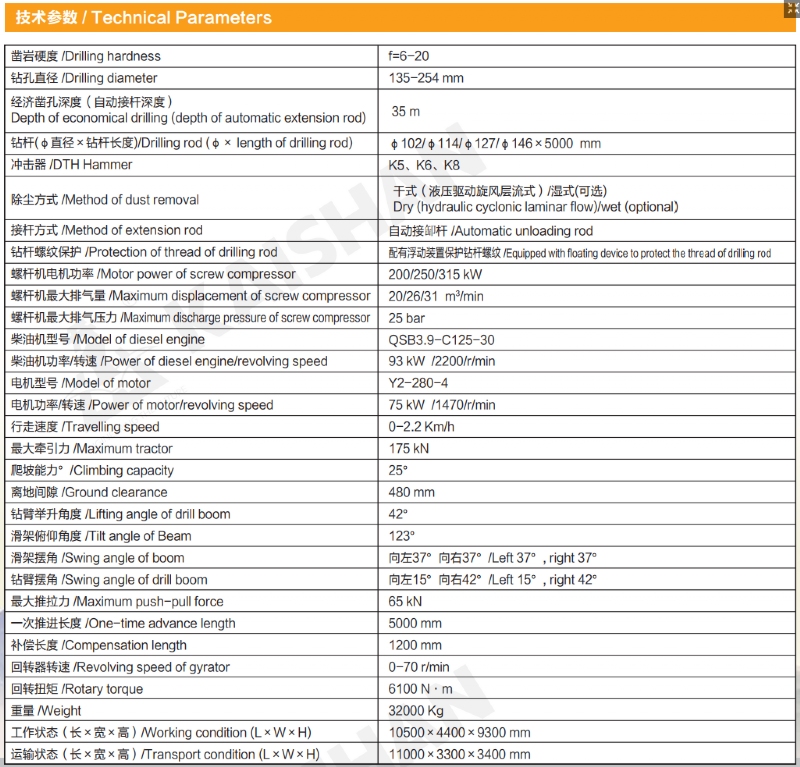

Equipped with a reliable 93kW Cummins diesel engine for traveling and high-stability electric driving system for drilling operation, the KT20S drill rig features 25bar high working pressure and 20-26m³/min large air displacement. It supports 135-165mm mainstream drilling diameter and 35m economic drilling depth, adapting to f=6-20 high-hardness rocks such as granite, limestone and basalt, fully meeting daily blasting and pre-splitting drilling demands of medium-sized mining projects.
Different from ordinary single-power drill rigs, the KT20S dual-power design realizes free switching between diesel moving and electric drilling. It can move freely in powerless mining areas and achieve low-energy and low-failure drilling operation during formal construction, effectively reducing long-term operating costs and improving comprehensive economic benefits for mine owners.
This rig is equipped with dual dry and wet dust removal systems, which can be switched according to different environmental policies and construction scenarios. It realizes dust-free and low-noise operation, fully complying with international environmental protection standards. The humanized operation system supports single-person intelligent operation, reducing labor investment and operational risks.
With 410mm ultra-high ground clearance, 25° excellent climbing capacity and reinforced wear-resistant crawler chassis, the Kaishan KT20S performs stably in rugged, high-temperature and dusty harsh mining environments. It features simple maintenance, low failure rate and outstanding energy-saving advantages, becoming the most cost-effective drilling solution for medium-scale open-pit mining and quarry projects worldwide.
In conclusion, Kaishan KT20S dual-power integrated DTH drilling rig is an energy-saving, efficient, flexible and durable mining drilling machine, the preferred equipment for global medium-sized mines pursuing low consumption and high productivity.
