● Compact body design, flexible movement, suitable for narrow working sites and mountain construction.
● Original Yuchai low-emission diesel engine, low fuel consumption and stable power output.
● Optimized integrated hydraulic system, low failure rate and high drilling efficiency.
●80-105mm drilling diameter and 25m maximum drilling depth, wide construction coverage.
● 30° super climbing capacity, strong adaptability for complex terrain.
●KG320H equipped with high-efficiency dust removal device to meet global environmental protection standards.
● Simple structure and easy maintenance, greatly reducing later operating costs.KAISHAN KG320 and KG320H are entry-level compact crawler DTH drilling rigs tailored for small and medium quarries, open pit mining, road slope construction and rock blasting projects. Adopting a professional 59kW Yuchai low-emission diesel engine, the drilling rig maintains sufficient power output while realizing low fuel consumption, complying with international non-road engine emission standards.
Equipped with an optimized integrated hydraulic system and high-precision rotary components, the equipment runs smoothly with stable torque, effectively improving rock breaking efficiency even for hard rock formations. The compact fuselage and flexible crawler walking structure enable the rig to adapt to narrow construction spaces, mountainous terrain and rugged road conditions, with a maximum climbing angle of 30 degrees, realizing strong site adaptability.
Supporting a drilling diameter of 80mm to 105mm and a maximum drilling depth of 25 meters, KG320/KG320H fully meets conventional rock blasting, foundation drilling and mine opening construction requirements. The upgraded KG320H model is fitted with an integrated high-efficiency dust removal system, which greatly reduces construction dust emissions, realizing green and environmentally friendly mining operations.
With thickened structural steel, durable track chassis and simple mechanical layout, the drilling rig features low failure rate and long service life. It is easy to operate and maintain, with low daily maintenance costs, becoming the most cost-effective small-scale open-pit drilling equipment for global engineering contractors and small mining

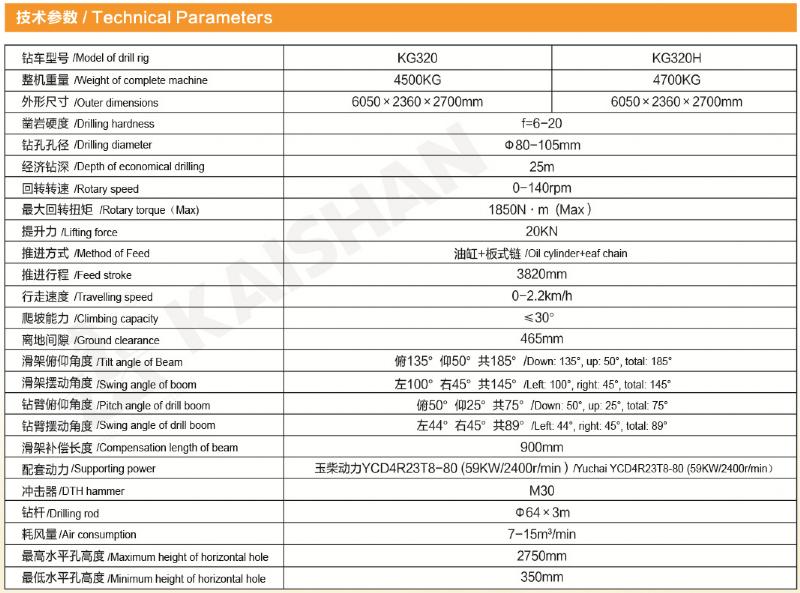

KG320/KG320H Drill Rig Technical Parameters
