ZT11 Integrated Open-Pit Down-the-Hole Drill Rig

ZT11 Integrated Open-Pit Down-the-Hole Drill Rig

– Advanced fully integrated PTO power drive design, single diesel engine drives both air compressor and hydraulic system, high power transmission efficiency and lower fuel consumption.

– Equipped with full automatic rod changing and unloading system, greatly reduces manual labor intensity, realizes continuous drilling and significantly improves overall construction efficiency.

– Built-in intelligent anti-jamming system and automatic drill rod lubrication module, effectively protects drill tools, reduces wear and failure rate, and extends service life of wearing parts.

– Supports vertical, inclined and horizontal multi-angle drilling, perfectly meets blasting and pre-splitting drilling demands for large open-pit mines, quarries and infrastructure projects.

– Standard closed air-conditioned driver cabin provides comfortable operating environment, isolating dust and noise, improving operator safety and working comfort in harsh mining conditions.

– Professional hydraulic dry dust removal system realizes dust-free green construction, fully compliant with international environmental protection standards for large-scale mining operations.

– Optimized heavy-duty crawler chassis and stable body structure, adapts to complex rugged terrain, ensuring long-term stable and high-intensity continuous operation.

Product Description：

The Kaishan ZT11 Integrated Open-Pit DTH Drilling Rig is a high-end intelligent heavy-duty drilling equipment newly upgraded for large-scale open-pit mines, large quarries and national infrastructure stone engineering projects. Adopting advanced integrated PTO power output technology, this model integrates power, air compression and hydraulic control systems, realizing high-efficiency, energy-saving and automatic drilling operation.

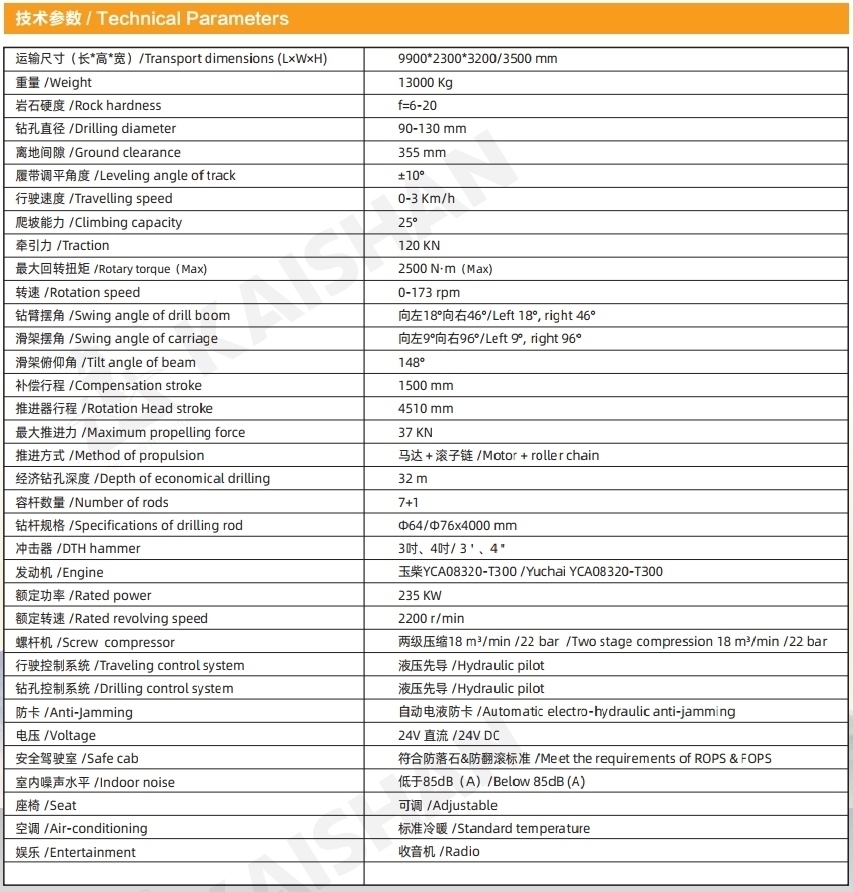

Powered by a reliable Yuchai non-road diesel engine, the ZT11 drill rig adopts single-engine dual-drive mode to support stable operation of the air compressor and hydraulic system. It covers 90-130mm mainstream drilling diameter and adapts to f=6-20 high-hardness rock strata, fully meeting the blasting hole and pre-splitting hole construction demands of large open-pit mining projects.

Different from ordinary manual drilling rigs, the Kaishan ZT11 is equipped with a full automatic rod changing and unloading system, which realizes automatic cycle of rod feeding, drilling and rod retracting. It effectively reduces manual operation and labor costs, greatly improving continuous construction efficiency, which is very suitable for large-batch and long-term mining operations.

Built-in intelligent anti-jamming protection system and automatic drill rod lubrication module monitor drilling status in real time, effectively avoiding drilling jamming accidents and reducing the wear and tear of drill bits and drill rods. The whole machine is equipped with a closed air-conditioned cabin, which isolates outdoor dust and noise, providing a safe and comfortable working environment for operators in harsh high-dust and high-temperature mining sites.

The professional hydraulic dry dust removal system supports environmentally friendly dust-free construction, complying with global mining environmental protection regulations. With a heavy-duty reinforced crawler chassis and 25° climbing capacity, the ZT11 drill rig operates stably on complex rugged terrains. Its stable performance, intelligent configuration and low maintenance cost make it a high-cost-performance professional drilling solution for large-scale open-pit mining worldwide.
